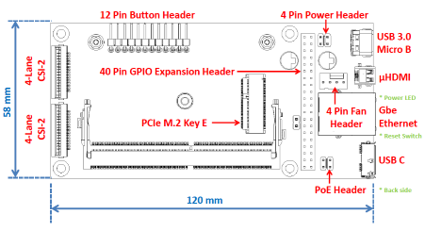

Vidtek Carrier Board N100 (VCB N100) is designed for NVIDIA® Jetson™ TX2 NX, NVIDIA® Jetson Nano™ and NVIDIA® Jetson Xavier™ NX. VCB N100 provides high speed connectors in a small form factor to ease Jetson hardware products integration for various AI and Computer Vision applications.
Carrier Board
Featured Applications:
- Compact Design
- Machine Learning
- Computer Vision
- HD H.264/H.265 Video Streaming
- License Plate Reader
- Object Detection and Tracking.
- UAV Flight Control
Smart Camera
Vidtek Smart Camera N200 solution combines the Best industrial FCB camera’s with a powerful NVIDIA® Jetson hardware products (NVIDIA® Jetson Nano™, NVIDIA® Jetson™ TX2 NX, and NVIDIA® Jetson Xavier™ NX) together in a compact housing. This unique combination of high-performance components can be used for many artificial intelligence-driven applications, such as License Plate Reading (LPR), vehicle identification, object classification, and many others depending upon the AI App installed. This H.264/H.265 IP camera can be upgradeable to full ONVIF Profile S remote control support and is upgradeable to Power-Over-Ethernet (PoE) if desired and supports NVIDIA DeepStream SDK, NVIDIA JetPack™ and NVIDIA® Jetson™ Linux Driver Package (L4T) to deliver low latency and high throughput for high-speed inference applications. The FCB camera series offers 30x telephoto zoom with image stabilization. Camera settings may be easily optimized for the end customers’ desired application via a simple graphical user interface and API for custom application development.
Featured Applications:
- Medical Applications
- Security
- Broadcasting
- Industrial Vision
- Video Conferencing
- UAV Flight Control
- Compact Design
- Machine Learning
- Computer Vision
- HD H.264/H.265 Video Streaming
- Object Detection and Tracking
- License Plate Reader
Base Model
| Components | Details |
|---|---|
| Camera | Sony® FCB-ER 8530 |
| Jetson Module | NVIDIA® Jetson Nano™ |
| Signal System | 1080p/23.98, 1080p/25, 1080p/29.97, 1080p/60, 720p/25, 720p/29.97, 720p/50, 720p/59.94 |
| Camera Control | Full camera support (Zoom, Focus, ePTZ, IR Cut, etc.) with VISCA Via Jetson Module. No external RS-232 cable needed |
| External Sync | No |
| Output Pixels (HxV) | 1920×1080 (FHD), 1280×720 (HD) |
| Camera Interface Board | Vidtek 550-4K3 |
| Jetson Carrier | Vidtek Carrier Board N100 |
| Interface | USB-C (Flash), 5V Fan Control Out, Micro HDMI, USB 3 Type B, GbE, BNC Gen Lock (FCB-ER8550) |
| Power | 12V DC (Jack) |
| Dimensions (W x H x D) | 155 X 135 X 75 mm |
Optional Upgrades are available
| UPGRADES | DETAILS |
|---|---|
| Camera | Sony® FCB-ER 8550/ External Sync upgrade is required |
| Jetson Module | NVIDIA® Jetson™ TX2 NX or NVIDIA® Jetson Xavier™ NX. |
| External Sync | Only available with FCB-ER8550 upgrade |
| Resolution | 3840×2160 (QFHD)– Up To 4K@ 30 FPS |
