VTK-550-4K1 HِDMI Interface Board
(for SONY FCB-ER8300, FCB-ER8550, and FCB-ER8530 Block Cameras )

VTK-550-4K interface board series provide up to 4K (QFHD) resolution HDMI video output signal and it supports all types of imaging applications. These series are compatible with FCB-ER8300, FCB-ER8550 and FCB-ER8530 Sony block cameras and they support a full range of video resolutions from 720P to 4K (2160P) while upholding optimum video signal quality.The serial interface on this product allows user to control compatible Sony block cameras by providing TTL and RS232C level. External sync option is also available for multi-camera systems, broadcasting and professional applications when interfacing with FCB-ER8550 camera.



Features

  • Standard headers
  • Custom connectors based on user system needs

Product description

Sony FCB- ER8550 Block Camera





Highlights:

  • 1/2.5-type Exmor RTM CMOS
  • Output pixels: QFHD(4K) 2160p (3,840 × 2,160)
  • 50 (W) × 60 (H) × 9.3 (D) mm
  • 30× Super Resolution Zoom (SRZ) and 20× Optical zoom
  • StableZoom™
  • 2D/3D Noise Reduction
  • Clear vision round the clock with Day/Night
  • External Synchronization
  • Auto ICR (Auto IR-cut Filter Removal)
  • Spherical privacy zone masking
  • Wide range of features for versatile operation
  • Motion detection
  • Slow AE response
  • Color enhancement









Applications:

  • Medical Applications
  • Industrial Vision
  • Security
  • Broadcasting
  • Drone Camera
  • Underwater Applications
  • House Of Worship

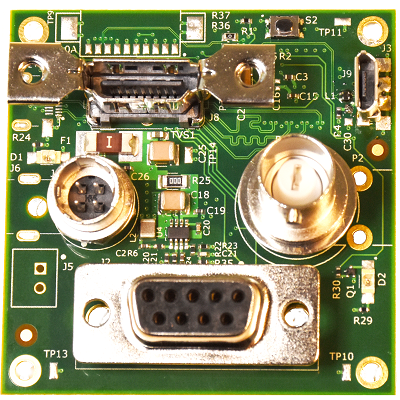

Connectors

① Vertical HDMI

② Power LED indicator

③ Vertical 4-pin Hirose power-in

⑤ Vertical serial /DSUB9 -VISCA command control

④ Vertical micro USB

⑥ Vertical BNC for external sync

⑦ Sync lock LED indicators

⑧ HDMI Cable gain control switch

Accessories

  • +12v Hirose Power Supply
  • 4K HDMI cable
  • D-sub9 M/M cable (3ft)
  • BNC cable (3ft)
  • Micro USB cable
